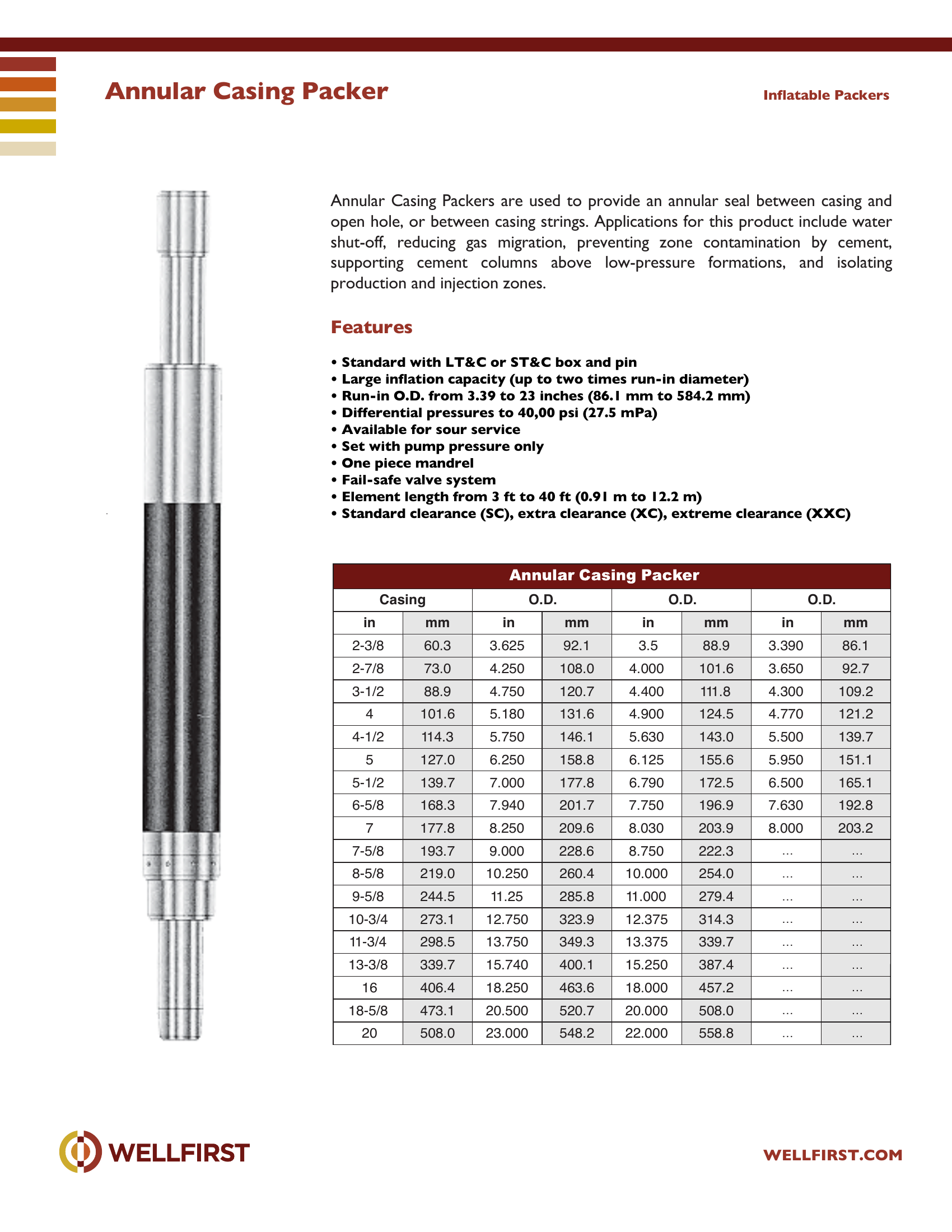

Annular Casing Packer

Annular Casing Packer Annular Casing Packers are used to provide an annular seal between casing and open hole, or between casing strings. Applications for this product include water shut-off, reducing gas migration, preventing zone contamination by cement, supporting cement columns above low-pressure formations, and isolating production and injection zones.

Key features

• Standard with LT&C or ST&C box and pin
• Large inflation capacity (up to two times run-in diameter)
• Run-in O.D. from 3.39 to 23 inches (86.1 mm to 584.2 mm)
• Differential pressures to 40,00 psi (27.5 mPa)
• Available for sour service
• Set with pump pressure only

Data sheet rating	Value
Max pressure (data sheet)	4,000 psi

Data sheet tables

Complete dimensional data, part numbering and setting procedures are in the PDF.

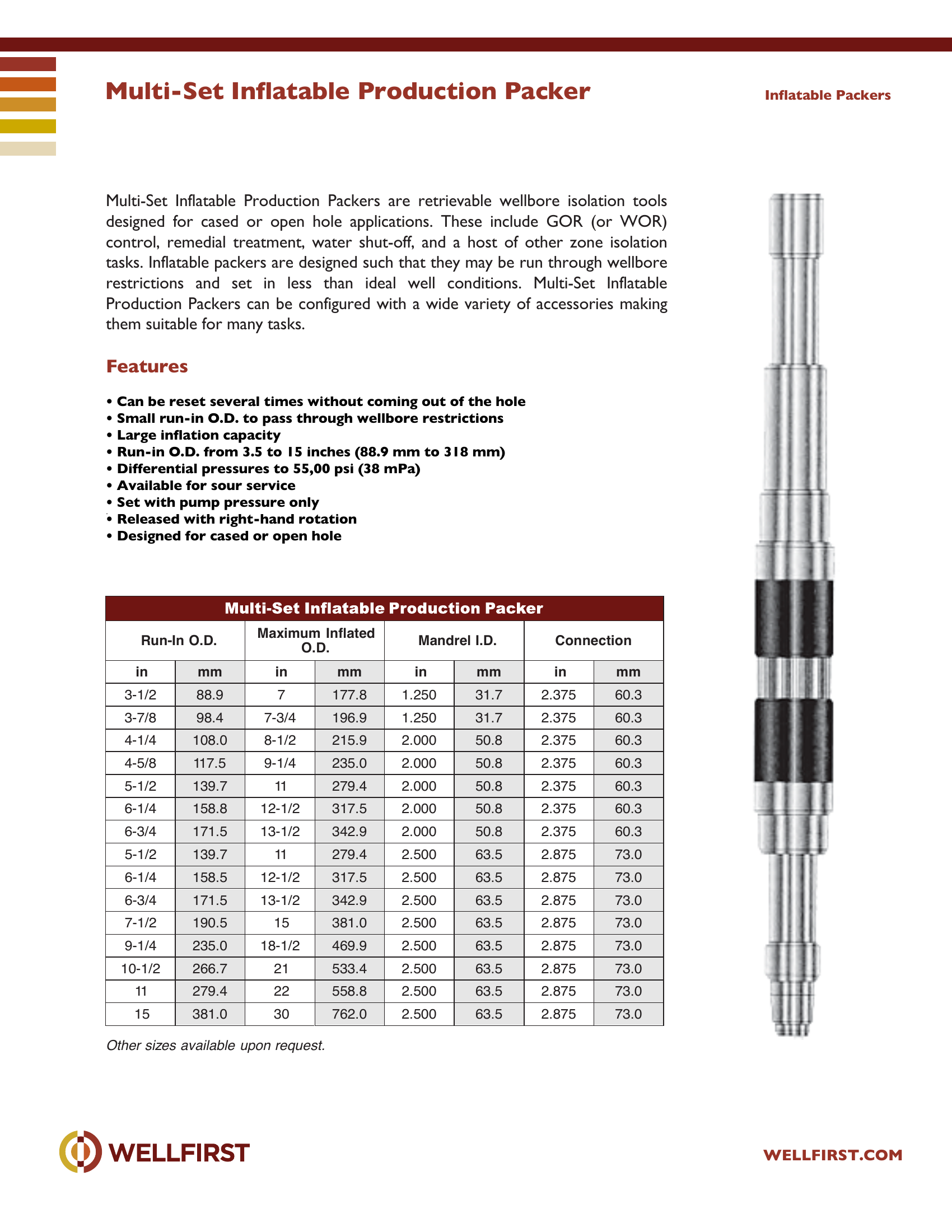

Multi-Set Inflatable Production Packer

Multi-Set Inflatable Production Packer Multi-Set Inflatable Production Packers are retrievable wellbore isolation tools designed for cased or open hole applications. These include GOR (or WOR) control, remedial treatment, water shut-off, and a host of other zone isolation tasks. Inflatable packers are designed such that they may be run through wellbore restrictions and set in less than ideal well conditions. Multi-Set Inflatable Production Packers can be configured with a wide variety of accessories making them suitable for many tasks.

Key features

• Can be reset several times without coming out of the hole
• Small run-in O.D. to pass through wellbore restrictions
• Large inflation capacity
• Run-in O.D. from 3.5 to 15 inches (88.9 mm to 318 mm)
• Differential pressures to 55,00 psi (38 mPa)
• Available for sour service

Data sheet rating	Value
Max pressure (data sheet)	5,500 psi

Data sheet tables

Complete dimensional data, part numbering and setting procedures are in the PDF.

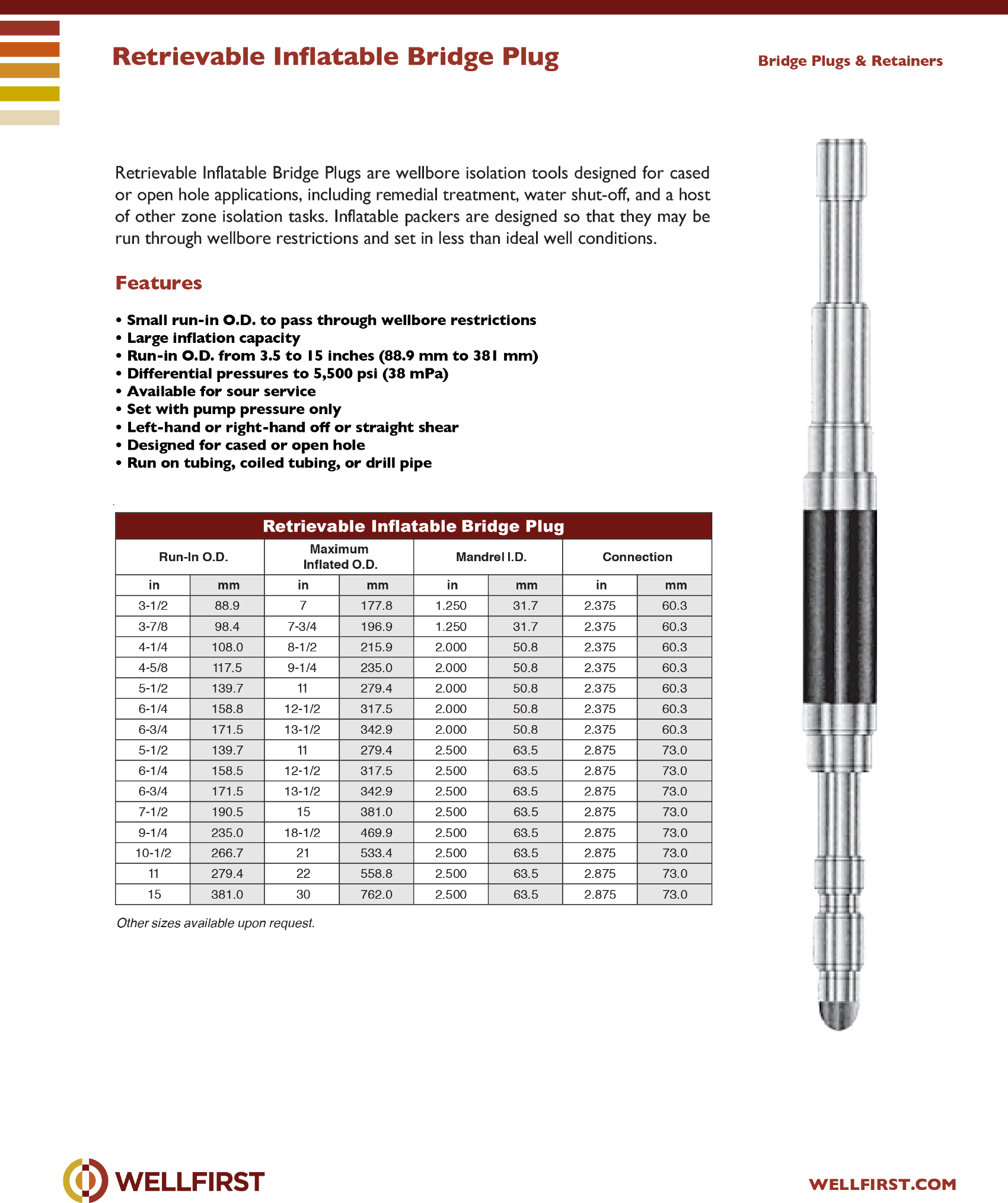

Retrievable Inflatable Bridge Plug

Complete dimensional data, part numbering and setting procedures are in the PDF.

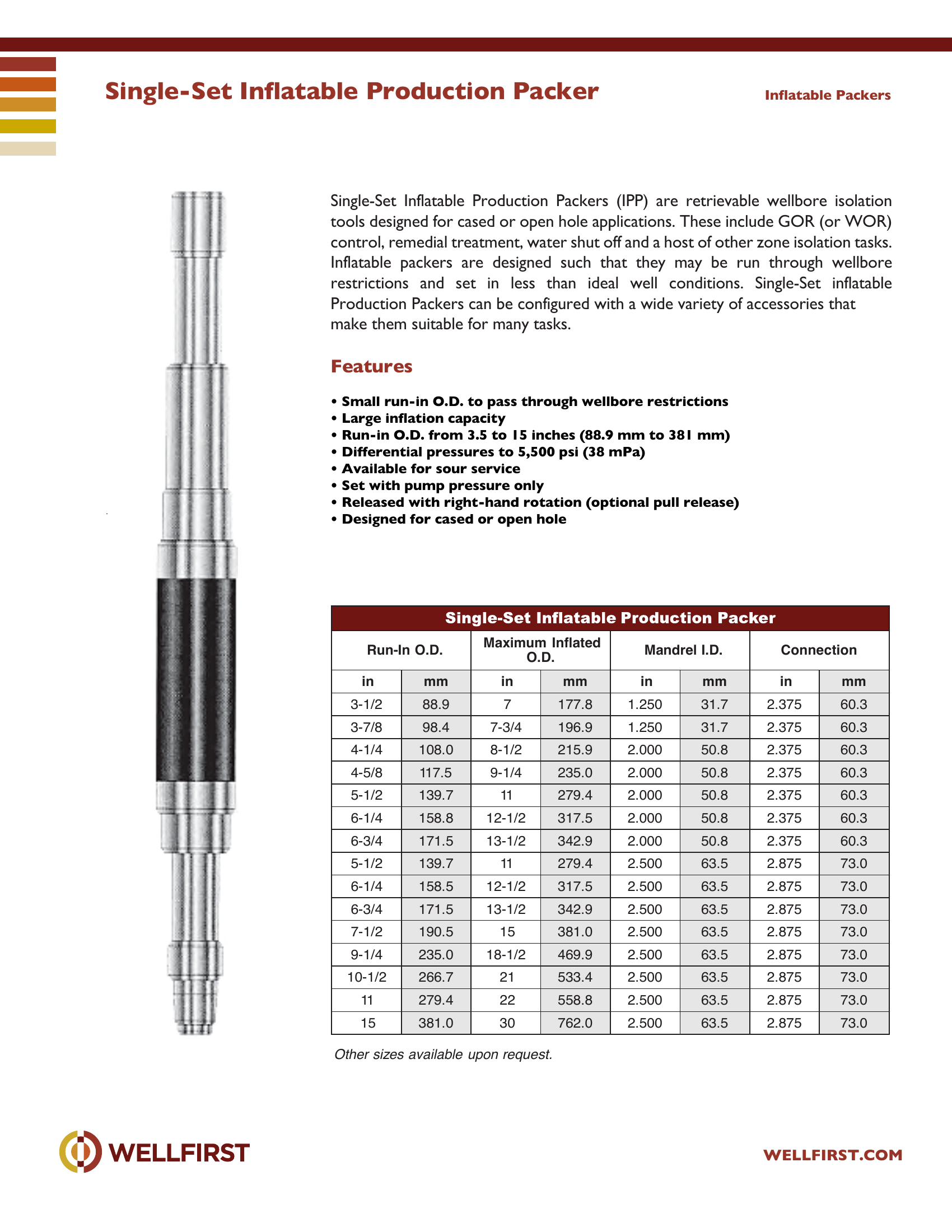

Single-Set Inflatable Production Packer

Single-Set Inflatable Production Packer Single-Set Inflatable Production Packers (IPP) are retrievable wellbore isolation tools designed for cased or open hole applications. These include GOR (or WOR) control, remedial treatment, water shut off and a host of other zone isolation tasks. Inflatable packers are designed such that they may be run through wellbore restrictions and set in less than ideal well conditions. Single-Set inflatable Production Packers can be configured with a wide variety of accessories that make them suitable for many tasks.

Key features

• Small run-in O.D. to pass through wellbore restrictions
• Large inflation capacity
• Run-in O.D. from 3.5 to 15 inches (88.9 mm to 381 mm)
• Differential pressures to 5,500 psi (38 mPa)
• Available for sour service
• Set with pump pressure only

Data sheet rating	Value
Max pressure (data sheet)	5,500 psi

Data sheet tables

Complete dimensional data, part numbering and setting procedures are in the PDF.
