Endurance Thermal Liner Hanger

PDF

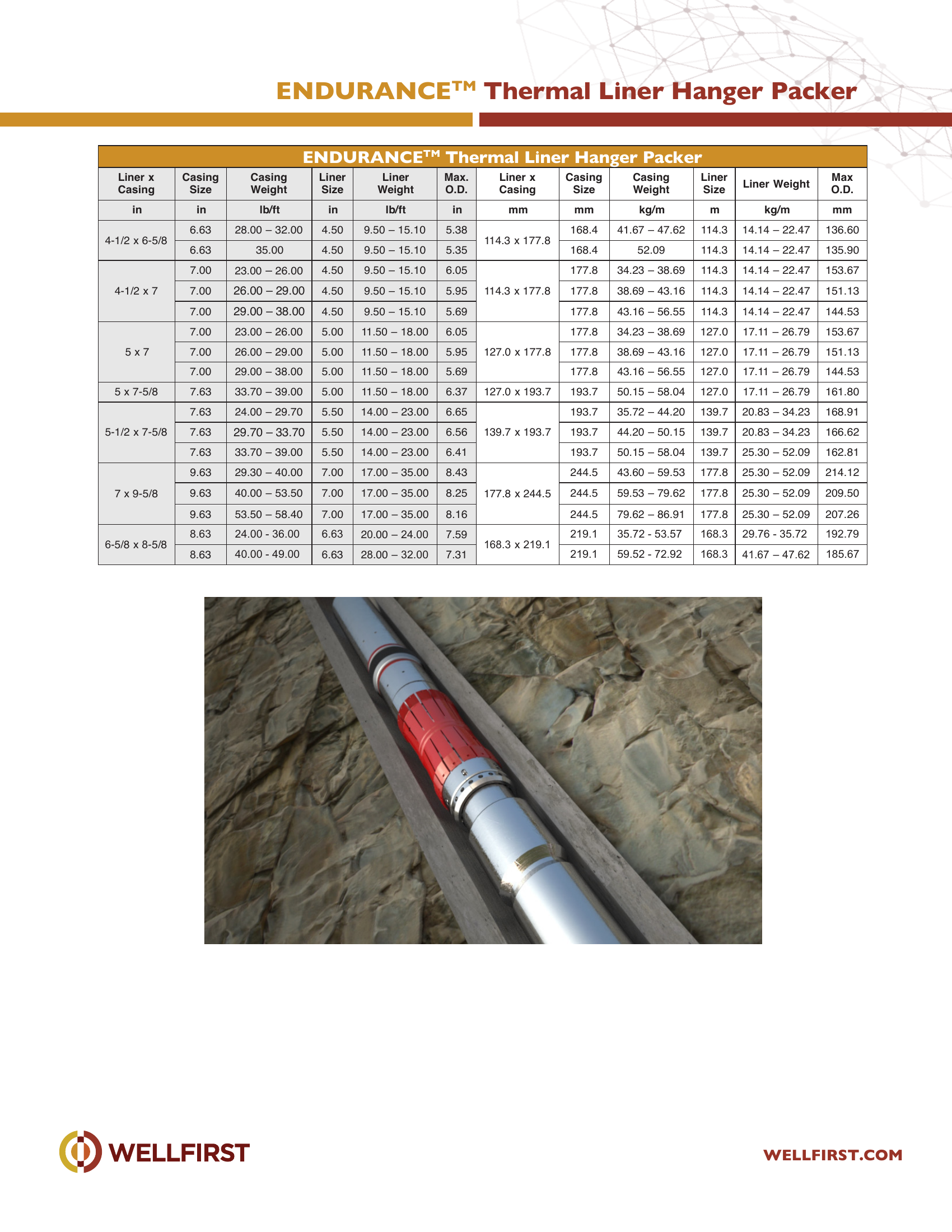

Endurance Thermal Liner Hanger

Data sheet tables

ENDURANCETM Thermal Liner	Casing Size	Casing Weight	Liner Size	Liner Weight	Max. O.D.	Liner x Casing	Casing Size	Casing Weight	Liner Size	Liner Weight	Max O.D.
	6.63	28.00 – 32.00	4.50	9.50 – 15.10	5.38	114.3 x 177.8	168.4	41.67 – 47.62	114.3	14.14 – 22.47	136.60
4-1/2 x 6-5/8
	6.63	35.00	4.50	9.50 – 15.10	5.35		168.4	52.09	114.3	14.14 – 22.47	135.90
	7.00	23.00 – 26.00	4.50	9.50 – 15.10	6.05	114.3 x 177.8	177.8	34.23 – 38.69	114.3	14.14 – 22.47	153.67
4-1/2 x 7	7.00	26.00 – 29.00	4.50	9.50 – 15.10	5.95		177.8	38.69 – 43.16	114.3	14.14 – 22.47	151.13
	7.00	29.00 – 38.00	4.50	9.50 – 15.10	5.69		177.8	43.16 – 56.55	114.3	14.14 – 22.47	144.53
	7.00	23.00 – 26.00	5.00	11.50 – 18.00	6.05	127.0 x 177.8	177.8	34.23 – 38.69	127.0	17.11 – 26.79	153.67
5 x 7	7.00	26.00 – 29.00	5.00	11.50 – 18.00	5.95		177.8	38.69 – 43.16	127.0	17.11 – 26.79	151.13
	7.00	29.00 – 38.00	5.00	11.50 – 18.00	5.69		177.8	43.16 – 56.55	127.0	17.11 – 26.79	144.53
5 x 7-5/8	7.63	33.70 – 39.00	5.00	11.50 – 18.00	6.37	127.0 x 193.7	193.7	50.15 – 58.04	127.0	17.11 – 26.79	161.80
	7.63	24.00 – 29.70	5.50	14.00 – 23.00	6.65	139.7 x 193.7	193.7	35.72 – 44.20	139.7	20.83 – 34.23	168.91
5-1/2 x 7-5/8	7.63	29.70 – 33.70	5.50	14.00 – 23.00	6.56		193.7	44.20 – 50.15	139.7	20.83 – 34.23	166.62
	7.63	33.70 – 39.00	5.50	14.00 – 23.00	6.41		193.7	50.15 – 58.04	139.7	25.30 – 52.09	162.81
	9.63	29.30 – 40.00	7.00	17.00 – 35.00	8.43	177.8 x 244.5	244.5	43.60 – 59.53	177.8	25.30 – 52.09	214.12
7 x 9-5/8	9.63	40.00 – 53.50	7.00	17.00 – 35.00	8.25		244.5	59.53 – 79.62	177.8	25.30 – 52.09	209.50
	9.63	53.50 – 58.40	7.00	17.00 – 35.00	8.16		244.5	79.62 – 86.91	177.8	25.30 – 52.09	207.26
	8.63	24.00 - 36.00	6.63	20.00 – 24.00	7.59	168.3 x 219.1	219.1	35.72 - 53.57	168.3	29.76 - 35.72	192.79
6-5/8 x 8-5/8
	8.63	40.00 - 49.00	6.63	28.00 – 32.00	7.31		219.1	59.52 - 72.92	168.3	41.67 – 47.62	185.67

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)

Enduro Liner Hanger Packer

7,500 psi700 °F

PDF

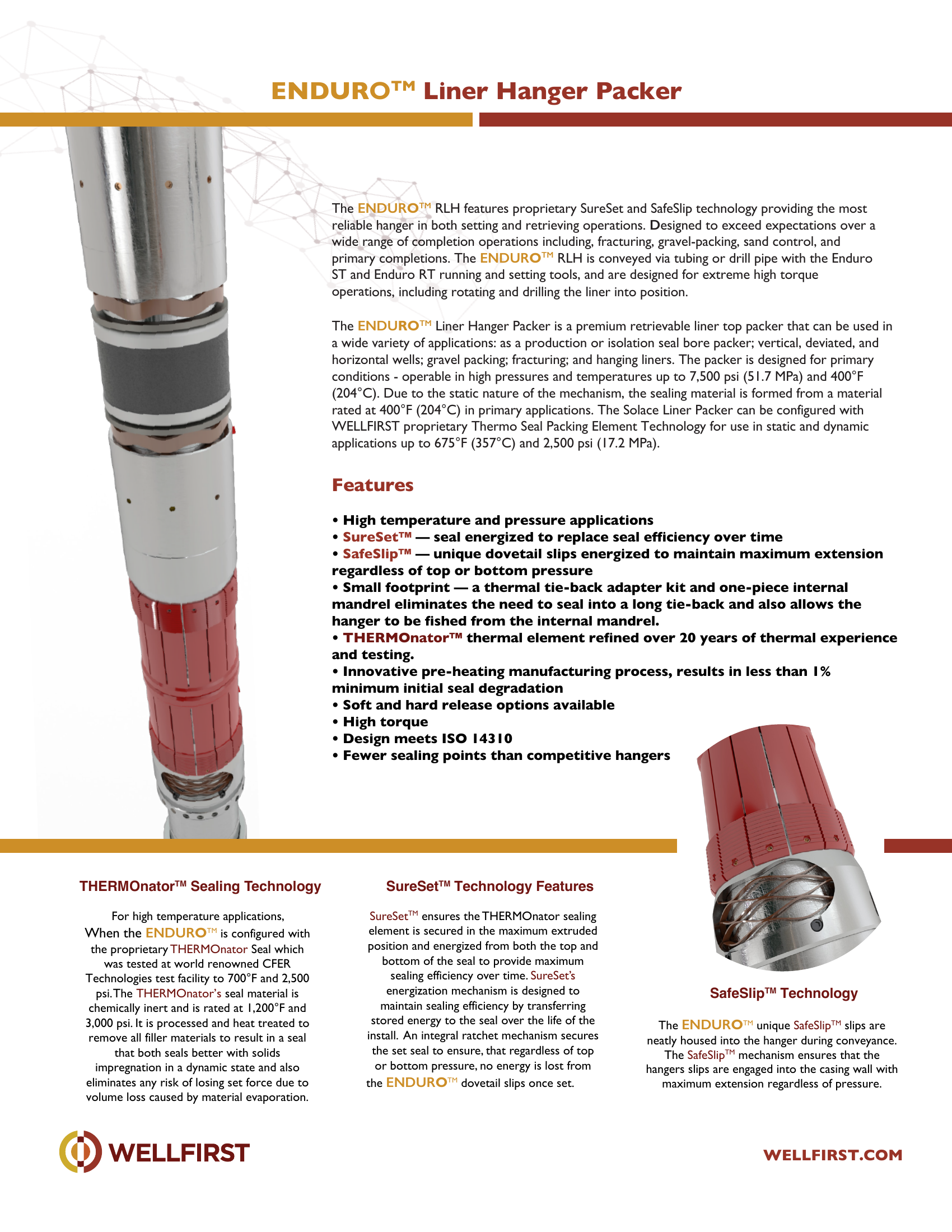

Enduro Liner Hanger Packer

The ENDUROTM RLH features proprietary SureSet and SafeSlip technology providing the most reliable hanger in both setting and retrieving operations. Designed to exceed expectations over a wide range of completion operations including, fracturing, gravel-packing, sand control, and primary completions. The ENDUROTM RLH is conveyed via tubing or drill pipe with the Enduro ST and Enduro RT running and setting tools, and are designed for extreme high torque operations, including rotating and drilling the liner into position. The ENDUROTM Liner Hanger Packer is a premium retrievable liner top packer that can be used in a wide variety of applications: as a production or isolation seal bore packer; vertical, deviated, and horizontal wells; gravel packing; fracturing; and hanging liners. The packer is designed for primary conditions - operable in high pressures and temperatures up to 7,500 psi (51.7 MPa) and 400°F (204°C). Due to the static nature of the mechanism, the sealing material is formed from a material rated at 400°F (204°C) in primary applications. The Solace Liner Packer can be configured with WELLFIRST proprietary Thermo Seal Packing Element Technology for use in static and dynamic applications up to 675°F (357°C) and 2,500 psi (17.2 MPa).

Key features

High temperature and pressure applications
SureSet™ — seal energized to replace seal efficiency over time
SafeSlip™ — unique dovetail slips energized to maintain maximum extension regardless of top or bottom pressure
Small footprint — a thermal tie-back adapter kit and one-piece internal mandrel eliminates the need to seal into a long tie-back and also allows the
THERMOnator™ thermal element refined over 20 years of thermal experience
Innovative pre-heating manufacturing process, results in less than 1% minimum initial seal degradation

Data sheet rating	Value
Max pressure (data sheet)	7,500 psi
Max temperature (data sheet)	700 °F

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)

Enduro Liner Hanger Running Setting Tool

10,000 psi

PDF

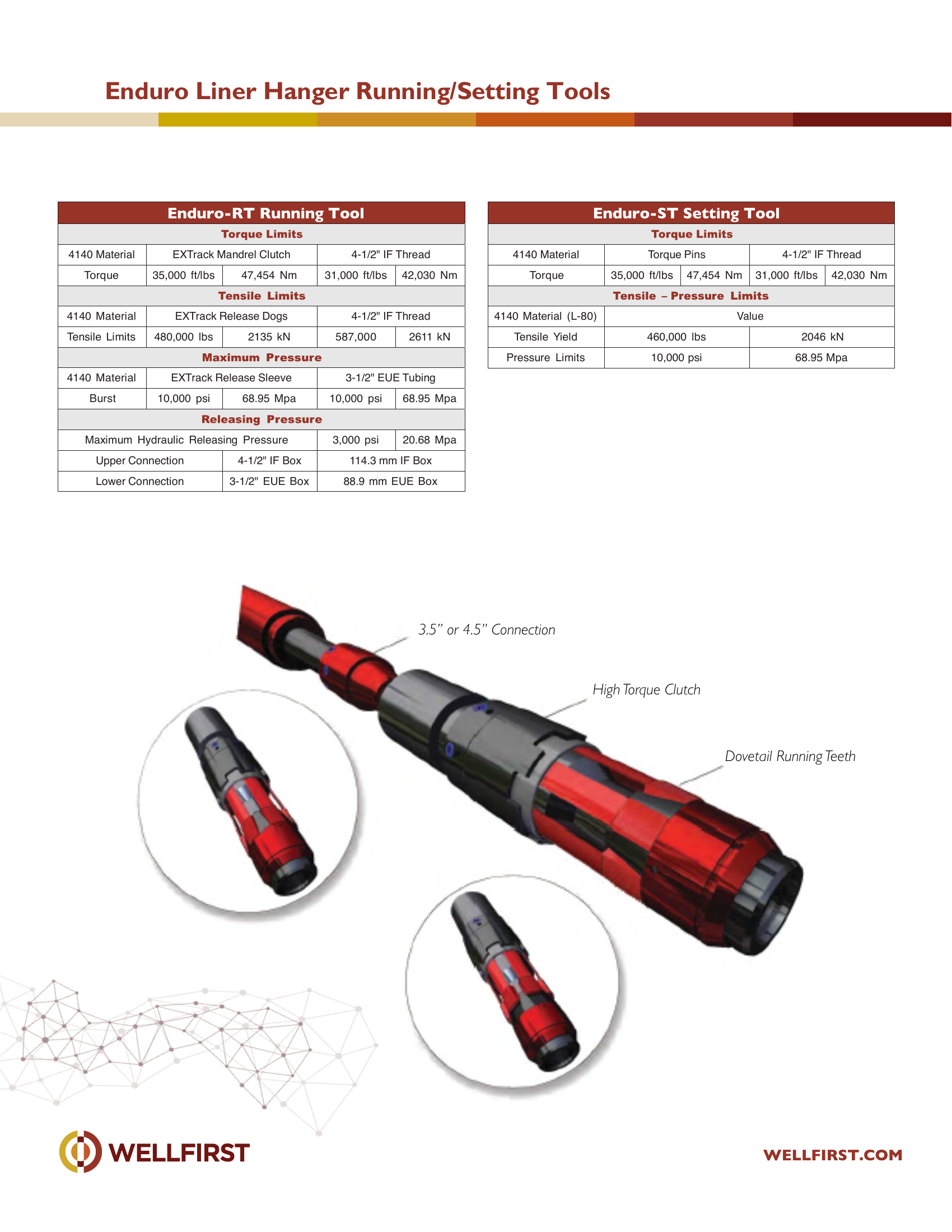

Enduro Liner Hanger Running Setting Tool

Data sheet rating	Value
Max pressure (data sheet)	10,000 psi

Data sheet tables

Enduro-RT Running To	35,000 ft/lbs	47,454 Nm	31,000 ft/lbs	42,030 Nm
4140 Material	EXTrack Release Dogs		4-1/2" IF Thread
Tensile Limits	480,000 lbs	2135 kN	587,000	2611 kN
4140 Material	EXTrack Release Sleeve		3-1/2" EUE Tubing
Burst	10,000 psi	68.95 Mpa	10,000 psi	68.95 Mpa
Maximum Hydraulic Releasing Pressure			3,000 psi	20.68 Mpa
Upper Connection		4-1/2" IF Box	114.3 mm IF Box
Lower Connection 3-		1/2" EUE Box	88.9 mm EUE Box

Enduro-ST Setting To	35,000 ft/lbs	31,000 ft/lbs
4140 Material (L-80)	Value
Tensile Yield	460,000 lbs	2046 kN
Pressure Limits	10,000 psi	68.95 Mpa

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)

Enduro Liner Top Packer

7,500 psi675 °F

PDF

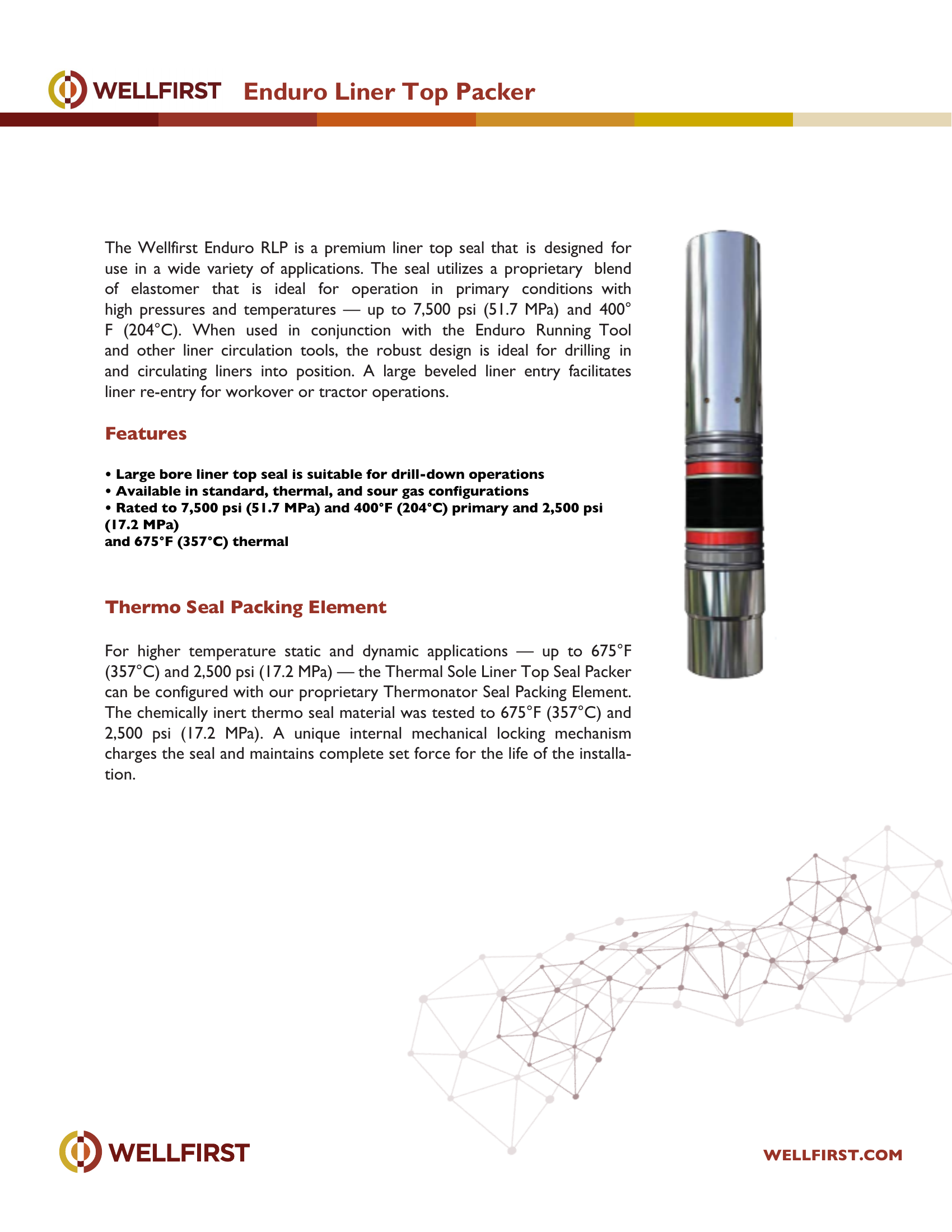

Enduro Liner Top Packer

Enduro Liner Top Packer The Wellfirst Enduro RLP is a premium liner top seal that is designed for use in a wide variety of applications. The seal utilizes a proprietary blend of elastomer that is ideal for operation in primary conditions with high pressures and temperatures — up to 7,500 psi (51.7 MPa) and 400° F (204°C). When used in conjunction with the Enduro Running Tool and other liner circulation tools, the robust design is ideal for drilling in and circulating liners into position. A large beveled liner entry facilitates liner re-entry for workover or tractor operations.

Key features

Large bore liner top seal is suitable for drill-down operations
Available in standard, thermal, and sour gas configurations
Rated to 7,500 psi (51.7 MPa) and 400°F (204°C) primary and 2,500 psi (17.2 MPa) and 675°F (357°C) thermal Thermo Seal Packing Element For higher temperature static and dynamic applications — up to 675°F (357°C) and 2,500 psi (17.2 MPa) — the Thermal Sole Liner Top Seal Packer The chemically inert thermo seal material was tested to 675°F (357°C) and 2,500 psi (17.2 MPa). A unique internal mechanical locking mechanism charges the seal and maintains complete set force for the life of the installa-

Data sheet rating	Value
Max pressure (data sheet)	7,500 psi
Max temperature (data sheet)	675 °F

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)

Enduro Running and Setting Tool

PDF

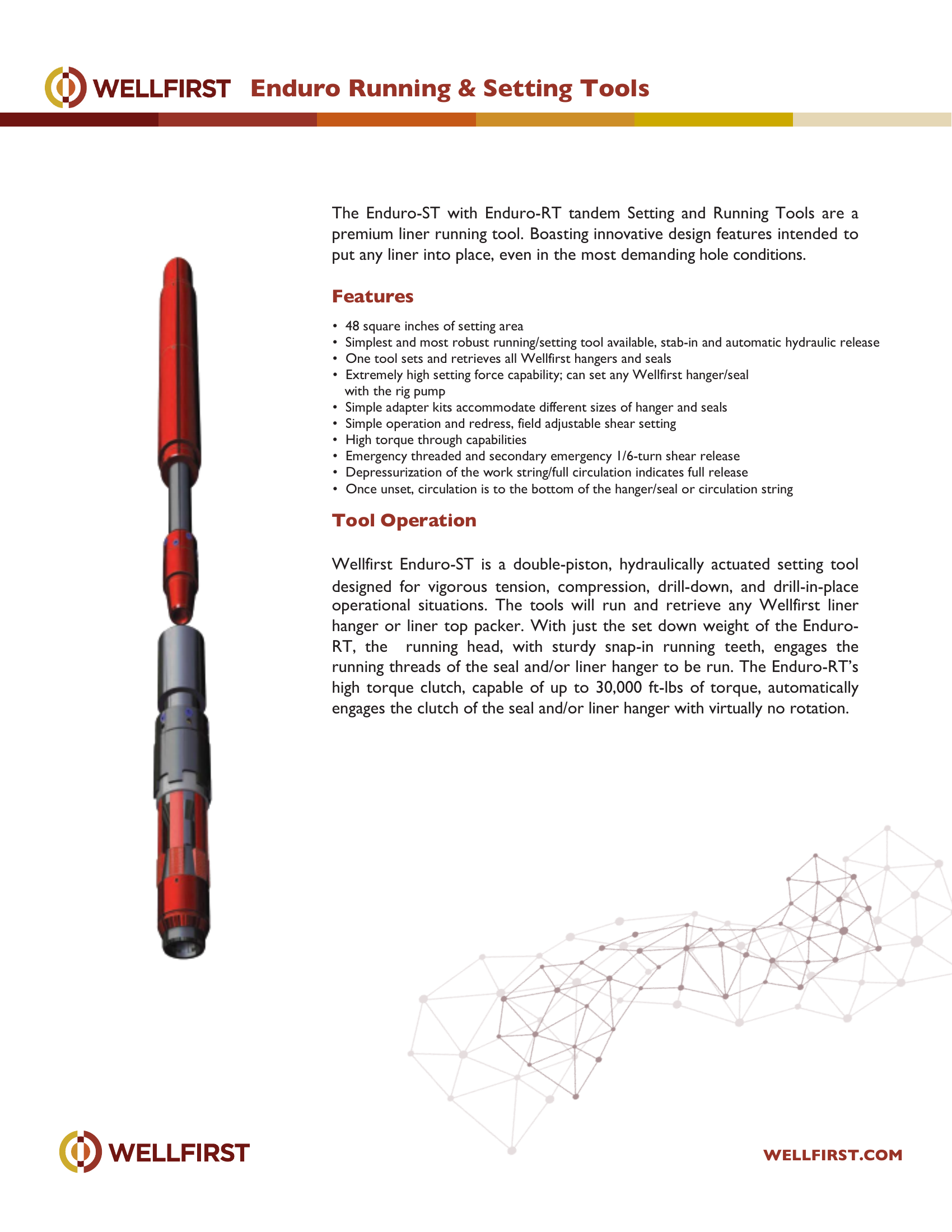

Enduro Running and Setting Tool

The Enduro-ST with Enduro-RT tandem Set ting and Runnin g Tools are a premium liner running tool. Boasting innovative design features intended to put any liner into place, even in the most demanding hole conditions.

Key features

48 square inches of setting area
Simplest and most robust running/setting tool available, stab-in and automatic hydraulic release
One tool sets and retrieves all Wellfirst hangers and seals
Extremely high setting force capability; can set any Wellfirst hanger/seal with the rig pump
Simple adapter kits accommodate different sizes of hanger and seals
Simple operation and redress, field adjustable shear setting

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)

Model SS Hydraulic Liner Setting Tool

PDF

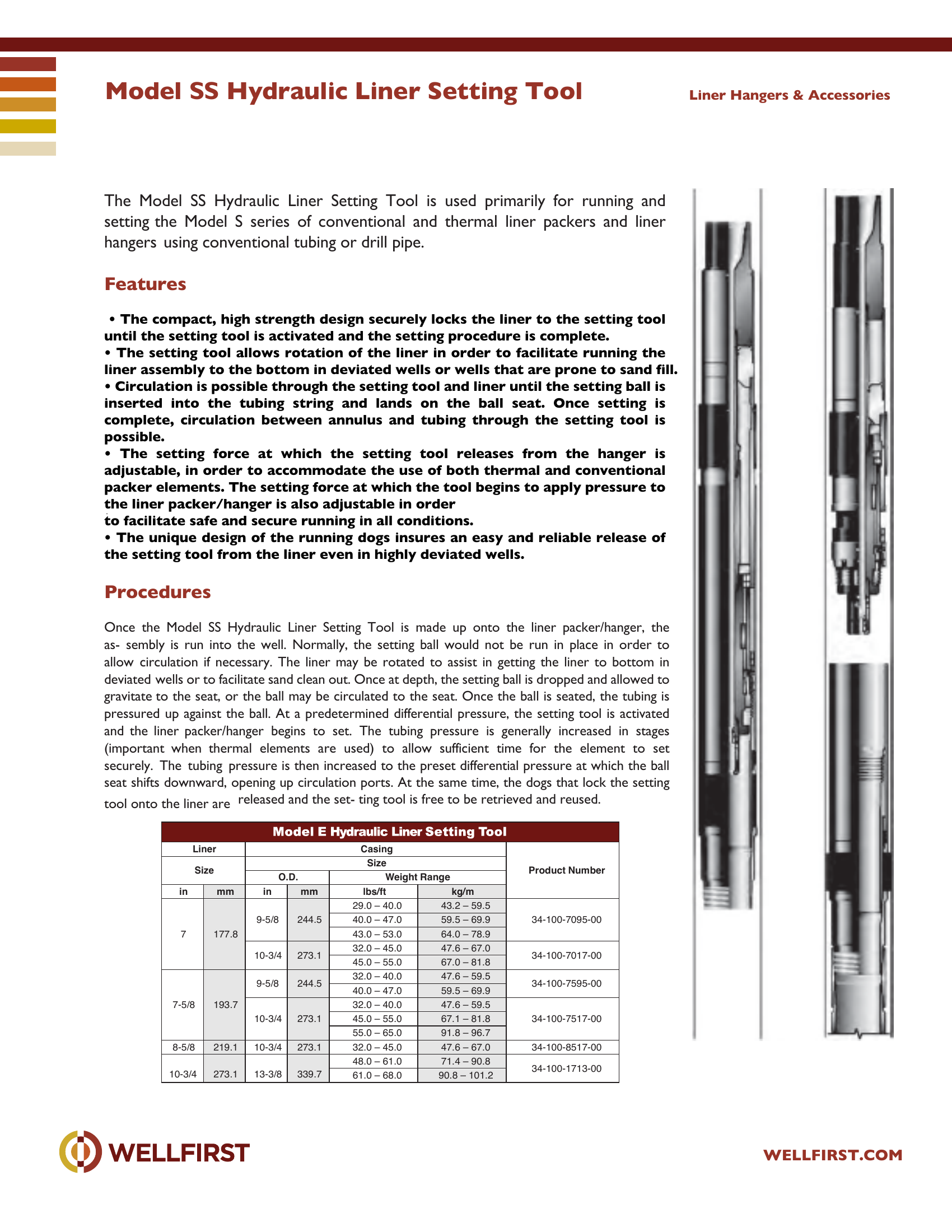

Model SS Hydraulic Liner Setting Tool

Model SS Hydraulic Liner Setting Tool The Model SS Hydraulic Liner Setting Tool is used primarily for running and setting the Model S series of conventional and thermal liner packers and liner hangers using conventional tubing or drill pipe.

Key features

The compact, high strength design securely locks the liner to the setting tool
The setting tool allows rotation of the liner in order to facilitate running the
Circulation is possible through the setting tool and liner until the setting ball is inserted into the tubing string and lands on the ball seat. Once setting is complete, circulation between annulus and tubing through the setting tool is
adjustable, in order to accommodate the use of both thermal and conventional packer elements. The setting force at which the tool begins to apply pressure to the liner packer/hanger is also adjustable in order
as- sembly is run into the well. Normally, the setting ball would not be run in place in order to allow circulation if necessary . The liner may be rotated to assist in getting the liner to bottom in deviated wells or to facilitate sand clean out. Once at depth, the setting ball is dropped and allowed to gravitate to the seat, or the ball may be circulated to the seat. Once the ball is seated, the tubing is pressured up against the ball. At a predetermined differential pressure, the setting tool is activated and the liner packer/hanger begins to set. The tubing pressure is generally increased in stages (important when thermal elements are used) to allow sufficient time for the element to set securely. The tubing pressure is then increased to the preset differential pressure at which the ball seat shifts downward, opening up circulation ports. At the same time, the dogs that lock the setting Liner Hangers & Accessories Liner Casing Product NumberSize Size in mm in mm lbs/ft kg/m 7 177.8 9-5/8 244.5 29.0 – 40.0 43.2 – 59.5 34-100-7095- 0040.0 – 47.0 59.5 – 69.9 43.0 – 53.0 64.0 – 78.9 10-3/4 273.1 32.0 – 45.0 47.6 – 67.0 34-100-7017- 0045.0 – 55.0 67.0 – 81.8 7-5/8 193.7 9-5/8 244.5 32.0 – 40.0 47.6 – 59.5 34-100-7595- 0040.0 – 47.0 59.5 – 69.9 10-3/4 273.1 32.0 – 40.0 47.6 – 59.5 34-100-7517- 0045.0 – 55.0 67.1 – 81.8 55.0 – 65.0 91.8 – 96.7 8-5/8 219.1 10-3/ 4 273.1 32.0 – 45.0 47.6 – 67.0 34-100-8517- 00 10-3/4 273.1 13-3/ 8 339.7 48.0 – 61.0 71.4 – 90.8 34-100-1713- 0061.0 – 68.0 90.8 – 101.2

Data sheet tables

Liner Size		Casing Size O.D.		Weight Range		Product Number
in	mm	in	mm	lbs/ft	kg/m
7		9-5/8		29.0 – 40.0	43.2 – 59.5	34-100-7095-00
			244.5	40.0 – 47.0	59.5 – 69.9
	177.8			43.0 – 53.0	64.0 – 78.9
		10-3/4		32.0 – 45.0	47.6 – 67.0	34-100-7017-00
			273.1
				45.0 – 55.0	67.0 – 81.8
7-5/8		9-5/8		32.0 – 40.0	47.6 – 59.5	34-100-7595-00
			244.5
				40.0 – 47.0	59.5 – 69.9
	193.7	10-3/4		32.0 – 40.0	47.6 – 59.5	34-100-7517-00
			273.1	45.0 – 55.0	67.1 – 81.8
				55.0 – 65.0	91.8 – 96.7
8-5/8	219.1	10-3/4	273.1	32.0 – 45.0	47.6 – 67.0	34-100-8517-00
10-3/4		13-3/8		48.0 – 61.0	71.4 – 90.8	34-100-1713-00
	273.1		339.7	61.0 – 68.0	90.8 – 101.2

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)

PermaPak Liner Top Packer

3,500 psi

PDF

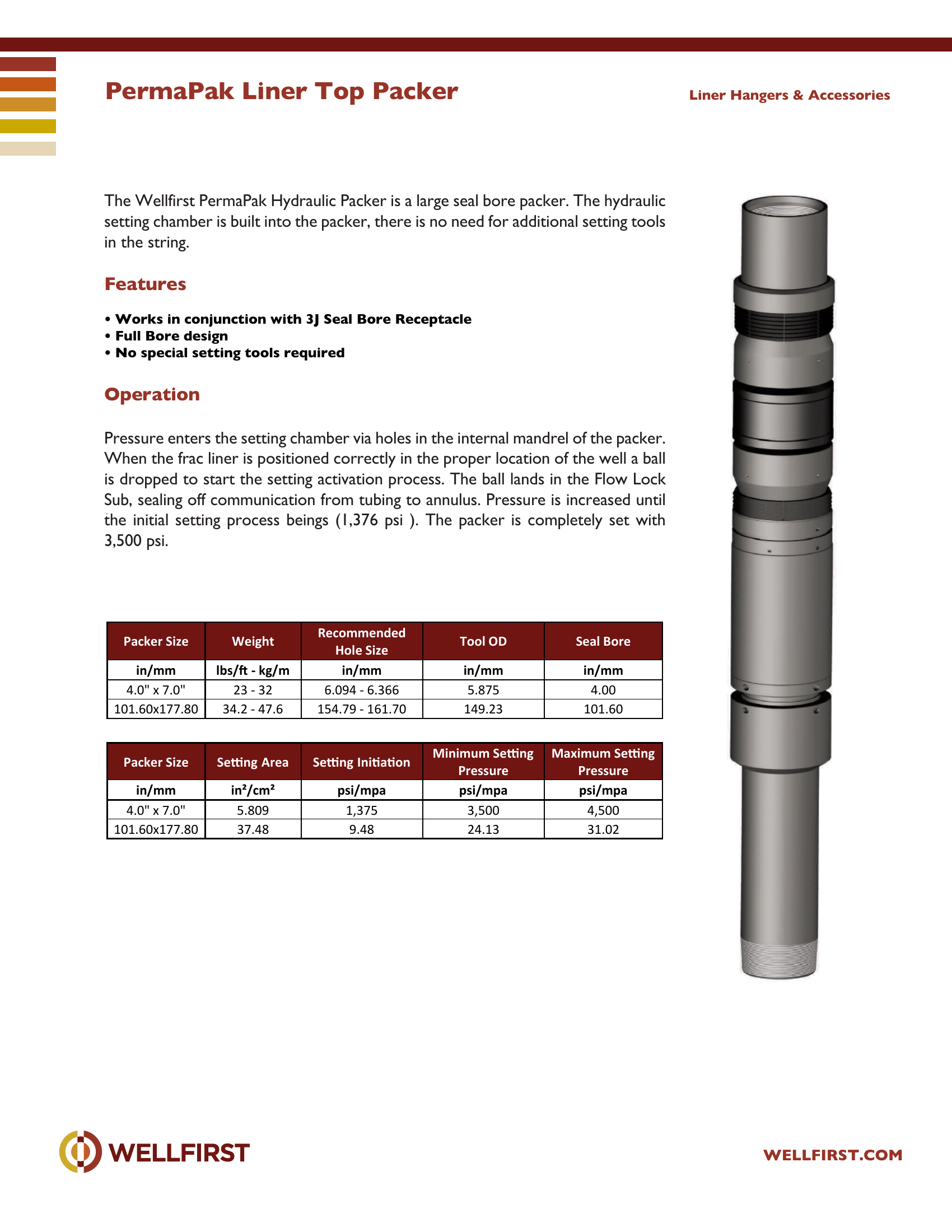

PermaPak Liner Top Packer

PermaPak Liner Top Packer The Wellfirst PermaPak Hydraulic Packer is a large seal bore packer. The hydraulic setting chamber is built into the packer, there is no need for additional setting tools in the string.

Key features

Works in conjunction with 3J Seal Bore Receptacle
Full Bore design
No special setting tools required Operation Pressure enters the setting chamber via holes in the internal mandrel of the packer. is dropped to start the setting activation process. The ball lands in the Flow Lock Sub, sealing off communication from tubing to annulus. Pressure is increased until the initial setting process beings (1,376 psi ). The packer is completely set with Liner Hangers & Accessories Packer Size Weight Recommended Hole Size Tool OD Seal Bore in/mm lbs/ft - kg/m in/mm in/mm in/mm 4.0" x 7.0" 23 - 32 6.094 - 6.366 5.875 4.00 101.60x177.80 34.2 - 47.6 154.79 - 161.70 149.23 101.60 Packer Size Setting Area Setting Initiation Minimum Setting Pressure Maximum Setting Pressure in/mm in²/cm² psi/mpa psi/mpa psi/mpa 4.0" x 7.0" 5.809 1,375 3,500 4,500 101.60x177.80 37.48 9.48 24.13 31.02

Data sheet rating	Value
Max pressure (data sheet)	3,500 psi

Data sheet tables

Packer Size in/mm	Weight lbs/ft - kg/m	Recommended Hole Size in/mm	Tool OD in/mm	Seal Bore in/mm
4.0" x 7.0"	23 - 32	6.094 - 6.366	5.875	4.00
101.60x177.80	34.2 - 47.6	154.79 - 161.70	149.23	101.60

Packer Size in/mm	Setting Area in²/cm²	Setting Initiation psi/mpa	Minimum Setting Pressure	Maximum Setting Pressure
4.0" x 7.0"	5.809	1,375	3,500	4,500
101.60x177.80	37.48	9.48	24.13	31.02

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)

Thermal Sole Liner Top Seal Packer

PDF

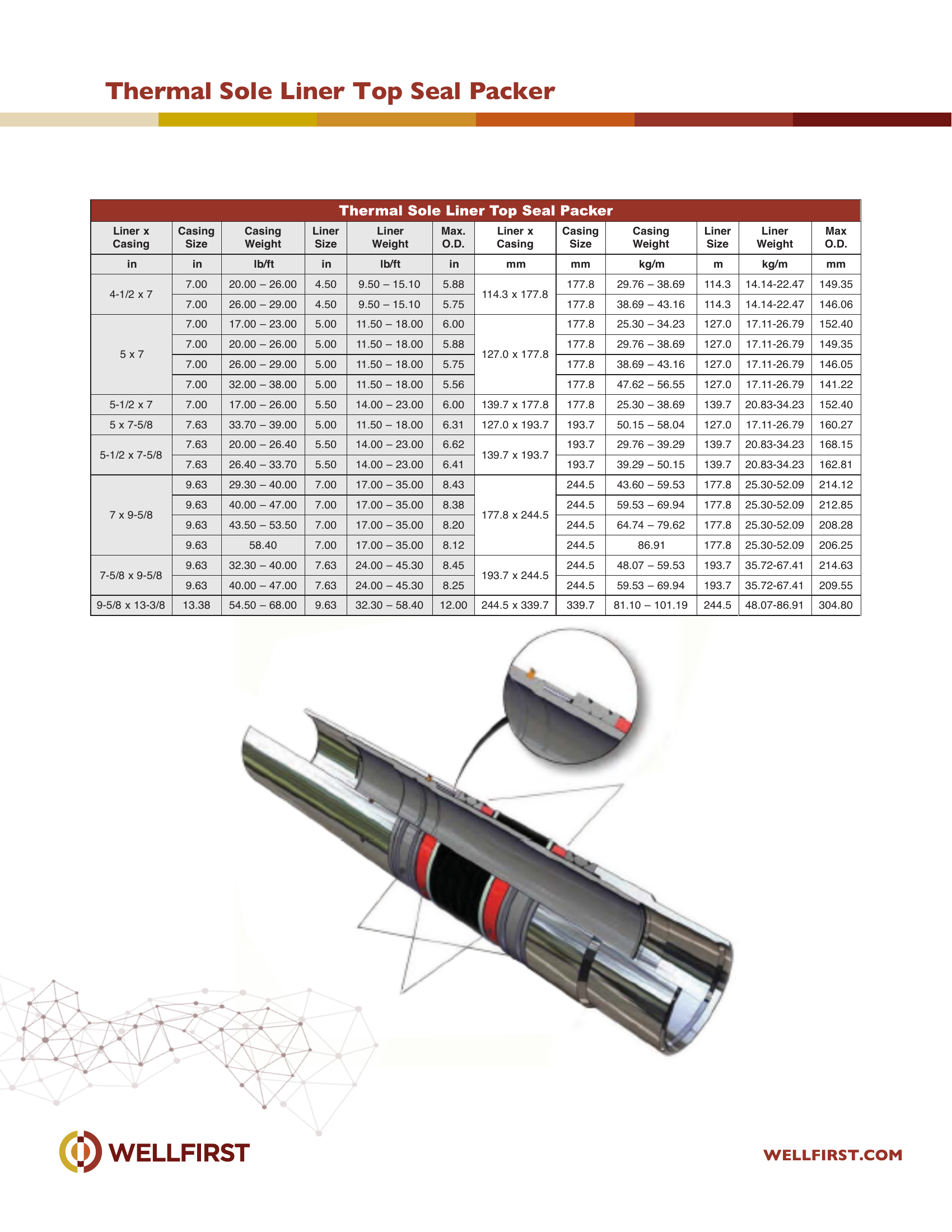

Thermal Sole Liner Top Seal Packer

Data sheet tables

Liner x Casing	Size in	Weight lb/ft	Size in	Weight lb/ft	O.D. in	mm	mm	kg/m	m	kg/m	mm
	7.00	20.00 – 26.00	4.50	9.50 – 15.10	5.88	114.3 x 177.8	177.8	29.76 – 38.69	114.3	14.14-22.47	149.35
4-1/2 x 7
	7.00	26.00 – 29.00	4.50	9.50 – 15.10	5.75		177.8	38.69 – 43.16	114.3	14.14-22.47	146.06
	7.00	17.00 – 23.00	5.00	11.50 – 18.00	6.00	127.0 x 177.8	177.8	25.30 – 34.23	127.0	17.11-26.79	152.40
	7.00	20.00 – 26.00	5.00	11.50 – 18.00	5.88		177.8	29.76 – 38.69	127.0	17.11-26.79	149.35
5 x 7
	7.00	26.00 – 29.00	5.00	11.50 – 18.00	5.75		177.8	38.69 – 43.16	127.0	17.11-26.79	146.05
	7.00	32.00 – 38.00	5.00	11.50 – 18.00	5.56		177.8	47.62 – 56.55	127.0	17.11-26.79	141.22
5-1/2 x 7	7.00	17.00 – 26.00	5.50	14.00 – 23.00	6.00	139.7 x 177.8	177.8	25.30 – 38.69	139.7	20.83-34.23	152.40
5 x 7-5/8	7.63	33.70 – 39.00	5.00	11.50 – 18.00	6.31	127.0 x 193.7	193.7	50.15 – 58.04	127.0	17.11-26.79	160.27
	7.63	20.00 – 26.40	5.50	14.00 – 23.00	6.62	139.7 x 193.7	193.7	29.76 – 39.29	139.7	20.83-34.23	168.15
5-1/2 x 7-5/8
	7.63	26.40 – 33.70	5.50	14.00 – 23.00	6.41		193.7	39.29 – 50.15	139.7	20.83-34.23	162.81
	9.63	29.30 – 40.00	7.00	17.00 – 35.00	8.43	177.8 x 244.5	244.5	43.60 – 59.53	177.8	25.30-52.09	214.12
	9.63	40.00 – 47.00	7.00	17.00 – 35.00	8.38		244.5	59.53 – 69.94	177.8	25.30-52.09	212.85
7 x 9-5/8
	9.63	43.50 – 53.50	7.00	17.00 – 35.00	8.20		244.5	64.74 – 79.62	177.8	25.30-52.09	208.28
	9.63	58.40	7.00	17.00 – 35.00	8.12		244.5	86.91	177.8	25.30-52.09	206.25
	9.63	32.30 – 40.00	7.63	24.00 – 45.30	8.45	193.7 x 244.5	244.5	48.07 – 59.53	193.7	35.72-67.41	214.63
7-5/8 x 9-5/8
	9.63	40.00 – 47.00	7.63	24.00 – 45.30	8.25		244.5	59.53 – 69.94	193.7	35.72-67.41	209.55
9-5/8 x 13-3/8	13.38	54.50 – 68.00	9.63	32.30 – 58.40	12.00	244.5 x 339.7	339.7	81.10 – 101.19	244.5	48.07-86.91	304.80

Complete dimensional data, part numbering and setting procedures are in the PDF.

Full data sheet (PDF)
